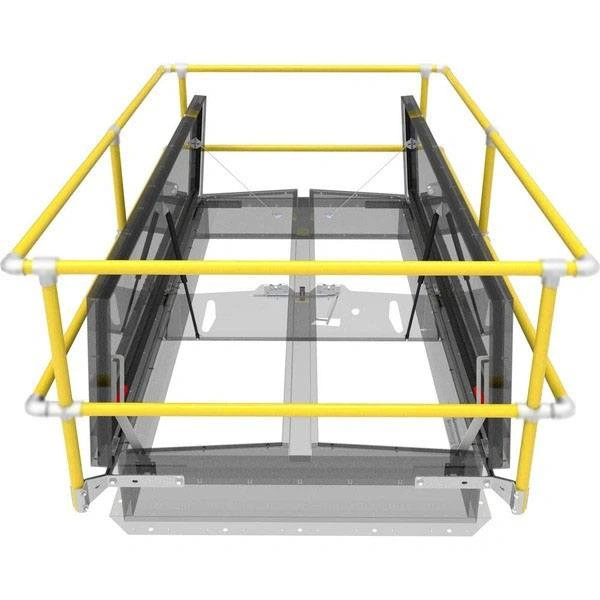

Four-Sided Smoke Vent Safety Railing

Part Number:
BSRTG
Out of Stock
Learn More

Description

Babcock-Davis' OSHA compliant Safety Railing is ideal for new and retrofit applications. The safety railing mounts to the existing smoke vent curb counterflash without penetrating the membrane.

Features

  • OSHA Compliant Fall Protection
  • Easy Field Installation
Sweets ProductTAG Sweets ProductTAG


Specifications

Model BSRVG
Material Rails and Posts, galvanized steel, 1-1/4 inch ID (1.66 inch OD) Schedule 40 pipe A53 Grade B
Fittings Cast aluminum alloy with set screw hold
Mounting Brackets 3/16 inch steel, zinc plated with a patented nut backing plate
Hardware Hex head bolts 3/8 inch - 16 x 3/4 inch zinc plated steel
Compliance OSHA 29 CFR1910.23 guarding floor and wall openings and holes
Warranty Five (5) years
Sizes Industry standard and custom sizes available

Order Guide

Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

BASE WIDTH X LENGTH EXIT

BSRVG

  X   NN
  Standard Sizes (in.)
36 x 30
36 x 36
48 x 48
48 x 96
60 x 96
60 x 120
60 x 144
66 x 144
72 x 144

Additional sizes and options available, call for more information.

VIDEOS

Coming soon.

REPLACEMENT PARTS

Coming soon.

WARRANTY

BABCOCK-DAVIS warrants all Safety Railings to be free from manufacturing defects in materials, factory finishes, and workmanship for a period of five (5) years from the date of shipment.

Should a product fail to function in normal use within this period, Babcock-Davis shall furnish a replacement or new part at Babcock-Davis' discretion. Failure to use product in methods consistent with Babcock-Davis product manuals shall relieve Babcock-Davis of any liability. Our liability under this warranty excludes installation or removal costs involved in the product replacement and excludes any responsibility for incidental or consequential damage of any nature.

Description Model Shop Drawing CAD Revit/BIM Data Sheet 3-Part Specs LEED Installation Warranty
36" x 36" BSRVG36X36NN PDF     PDF     WORD PDF
48" x 96" BSRVG48X96NN PDF DWG   PDF     WORD PDF

Specifications

Material:
Steel
