Roll-Up GRATEdesign

Part Number:
BGR34
Out of Stock
Learn More

Description

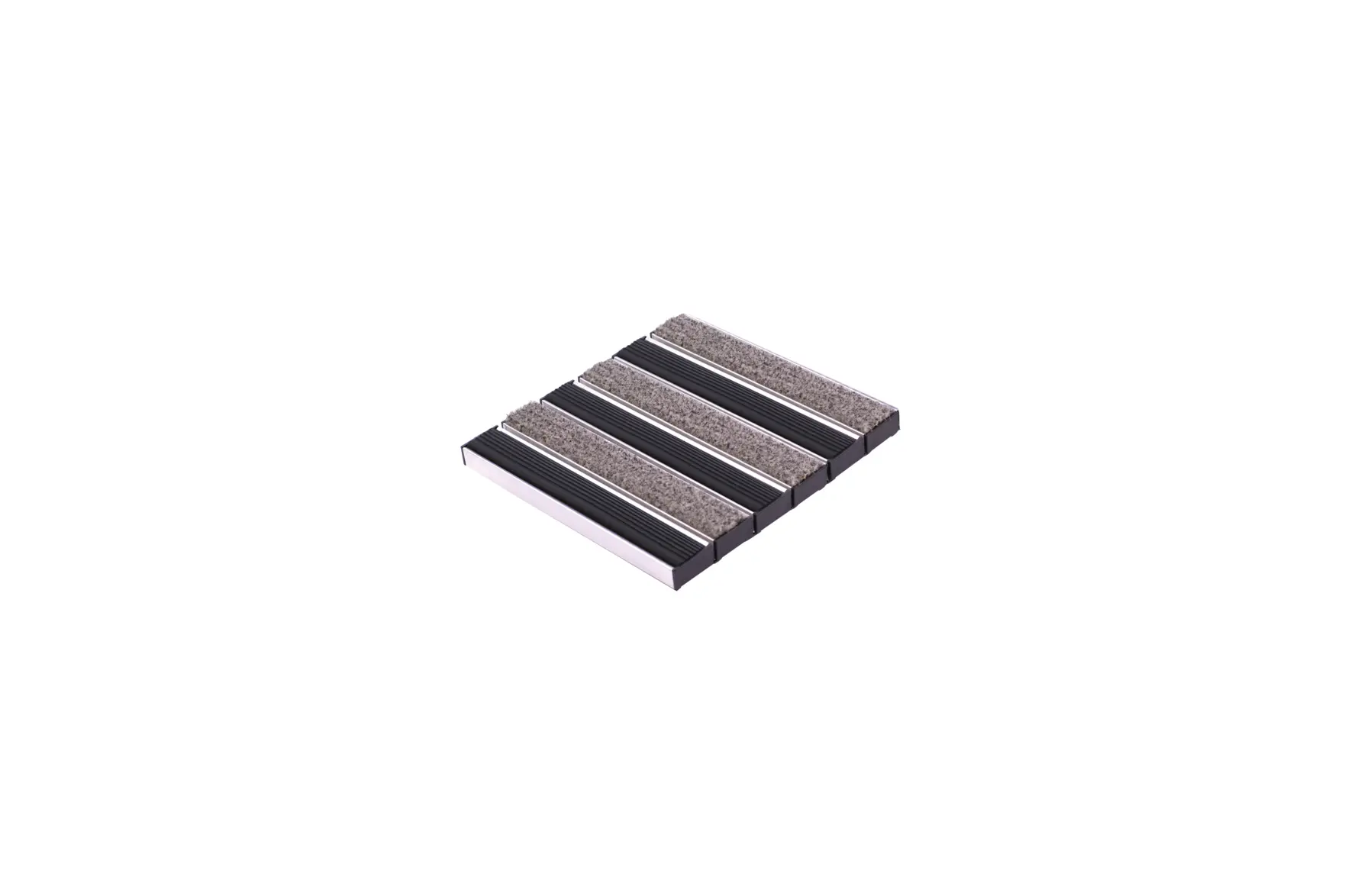

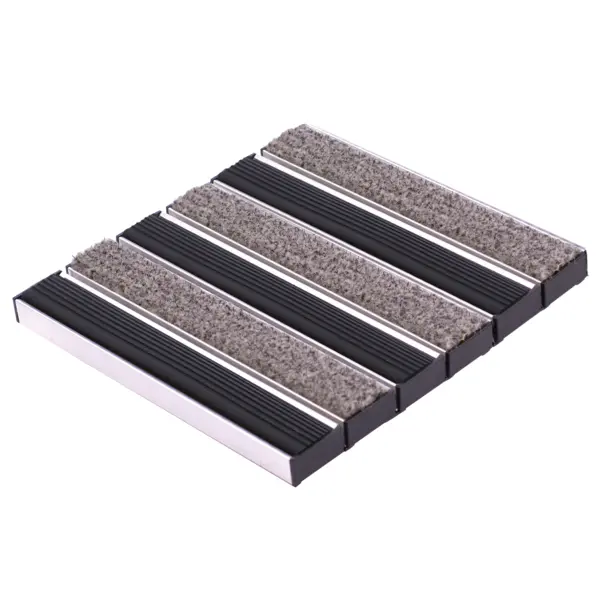

The Babcock-Davis GRATEdesign roll-up grille is constructed of hollow extrusion rails joined by low-density polyethylene (LDPE) hinge. The cushion retained in the captive aluminum tread port, along with drainage holes, allows debris and moisture to flow through the grate.

Features

  • Dual Tread Option
  • PVC Free Hinges
  • Roll Back for Easy Cleaning

Specifications

Model BGR34
Rail Material Aluminum
Depth 3/4 inch
Tread Spacing 1-1/2 inch on center
Tread Options Premium Carpet, Rugged Scrub, Vinyl, Ribbed Rubber, EcoTread, Vinyl Abrasive or Brush
Rail Finish Mill, Clear or Color Anodized
Frames Level Bed
Rolling Load 1000 Lbs./Wheel
Warranty 2 years

Videos

Coming soon.
Coming soon.

Order Guide

Use the table below to guide specification of available options. The part numbers are indicated in BOLD ORANGE text.

MODEL TREAD FUNCTION DEPTH TRAFFIC FLOW
BGR34P Premium Carpet Absorbent & Scraping 3/4 Medium
BGR34R Rugged Scrub Scraping 3/4 Medium
BGR34V Vinyl Scraping 3/4 Medium
BGR34U Ribbed Rubber Scraping 3/4 Medium
BGR34E EcoTread Slip Resistant 3/4 Medium
BGR34G Vinyl Abrasive Slip Resistant 3/4 Medium
BGR34B Brush Scraping 3/4 Medium
Download Tread + Color Chart

Colors shown give only an indication of shade.
Samples are available upon request.


Premium Carpet

Sandbar Espresso Smoke Slate Chrome Wrought Iron
Sandbar Espresso Smoke Slate Chrome Wrought Iron
Castle Gray Gun Metal Graphite Fern Denim
Castle Gray Gun Metal Graphite Fern Denim

Rugged Scrub

Chocolate Chip Charcoal Tan Licorice Black
Chocolate Chip Charcoal Tan Licorice Black

Vinyl

Blue Gray Beige Red Dark Brown Black
Blue Gray Beige Red Dark Brown Black

Ribbed Rubber

Black
Black

EcoTread

Midnight Black Milky Way Blue Night
Midnight Black Milky Way Blue Night

Vinyl Abrasive Insert

Brick Red Dark Brown Ocean Gray Safety Yellow Flat Black
Brick Red Dark Brown Ocean Gray Safety Yellow Flat Black

Brush

Blue
Black

Videos

Coming soon.
Coming soon.

WARRANTY

Babcock-Davis warrants all Entrance Flooring Systems to be free from manufacturing defects in materials, factory finishes, and workmanship for a period of two (2) years from the date of shipment. Should a product fail to function in normal use within this period, Babcock-Davis shall furnish a replacement or new part at Babcock-Davis' discretion.

  1. Installation and Maintenance Requirements
    The product must be installed, maintained and used according to Babcock-Davis product manuals, failure follow instructions shall relieve Babcock-Davis of any liability.
  2. Exclusions from Warranty
      (A) Our liability under this warranty excludes installation or removal costs involved in the product replacement and excludes any responsibility for incidental or consequential damage of any nature.
      (B) The following is not included under this Limited Warranty
            1. Damage caused by improper storage and handling prior to and after installation
            2. Damage due to the absence of, or inadequate, floor rests and floor protectors


For information on a warranty claim, please visit our Warranty Support section or call 888 412.3726.

Warranty Support

Description Model Shop Drawing CAD Revit/BIM Data Sheet 3-Part Specs LEED Installation Warranty
No Frame BGR34-NF PDF DWG LINK PDF WORD PDF   PDF
Level Bed,
Cast-In
BGR34-FLBC PDF DWG LINK PDF WORD PDF PDF PDF
Level Bed,
Mech. Fastened
BGR34-FLBM PDF DWG LINK PDF WORD PDF PDF PDF

Specifications

Material:
Aluminum
Depth:
3/4 inch
Tread:
Premium Carpet, Rugged Scrub, EcoTread, Vinyl, Ribbed Rubber, Vinyl Abrasive, Brush
Frame Type:
Level Bed
Rolling Load:
1000 Lbs./Wheel
Traffic:
Medium
