Personnel™

Part Number:
BRHU
Out of Stock
Learn More

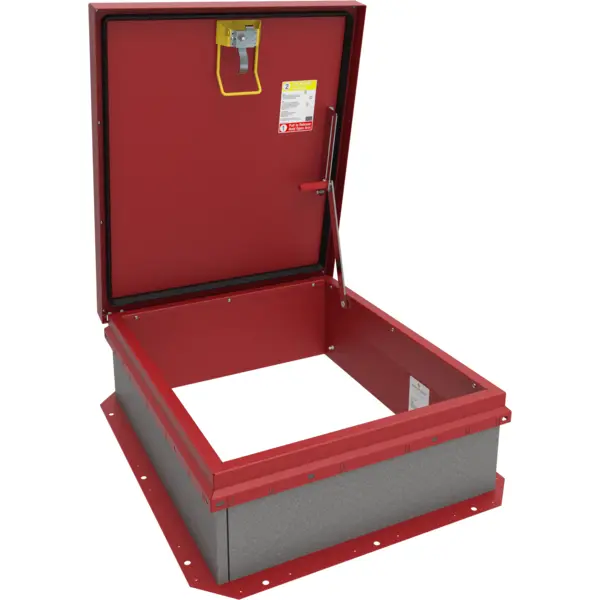

The Personnel Roof Hatch is improved to offer superior weather resistance in an easy to order stock roof hatch. The industry’s leading roof hatch is customizable, sized for OSHA compliant safety railings and available in a variety of materials and finishes.

Features

  • Miami-Dade & Florida Approved up to 20ft2
  • Safety Railing Ready
  • Superior Powder-Coat Finish
  • Easy Gas Spring Operation

Download Flyer

Specifications

Model BRHU
Material Aluminum, 11 gauge
Steel, 14 gauge galvanneal
Finish Mill
Red Oxide or High Reflectance White Powder Coat
Cover Formed metal cover with liner internally stiffened to withstand a live load of 40psf with a max deflection of 1/150 the span
Curb Single wall curb with railing ready EZ tab counterflash and mounting flange
Insulation 1 inch polystyrene in cover, 1 inch polyiso around curb; R-6
Gasket Extruded EPDM adhesive backed gasket seal, continuous around curb and cover to assure a continuous seal
Hold Open Arm Zinc plated steel automatic hold open arm locks cover in open position.
Latch Zinc plated steel latch with exterior and interior turn handle and padlock hasp; tested to 140psf wind uplift
Warranty Five (5) years
Certification Florida Product Approval, Miami-Dade County Approved NOA# 21-1201.01, Expiration Date May 25, 2027
Spring Gas spring with damper for smooth, controlled lift assistance
Hinge Heavy-duty pintle hinge with stainless steel hinge pin.
Pull Handle Interior safety pull down handle, yellow powder coat

Order Guide

STANARD MODELS

RED STEEL WHITE STEEL ALUMINUM SIZE ACCESS LATCH
BG3054 BW3054 BA3054 30 x 54 Ship Stair Single Point
BG3630 BW3630 BA3630 36 x 30 Ladder Single Point
BG3636 BW3636 BA3636 36 x 36 Ladder Single Point
BG4848 BW4848 BA4848 48 x 48 Ladder Single Point
BG3072 BW3072 BA3072 30 x 72 Ship Stair 2-Point
BG3096 BW3096 BA3096 30 x 96 Service Stair 2-Point
BG3696 BW3696 BA3696 36 x 96* Service Stair 2-Point
*Not Miami-Dade County or State of Florida Approved
Additional sizes and options available, call for more information.

Videos

Parts and Maintenance

Hold Open Arm

Turn Handle

2-Point Latch & Turn Handle

Catch

2-Point Catch

Installing Rivnuts

Spring Pack

Hold Open Arm Change, Right to Left

Flash Built-Up Roof, Hot Application

WARRANTY

BABCOCK-DAVIS warrants all Roof Hatches to be free from manufacturing defects in materials, factory finishes, and workmanship for a period of five (5) years from the date of shipment.

Should a product fail to function in normal use within this period, Babcock-Davis shall furnish a replacement or new part at Babcock-Davis' discretion. Failure to use product in methods consistent with Babcock-Davis product manuals shall relieve Babcock-Davis of any liability. Our liability under this warranty excludes installation or removal costs involved in the product replacement and excludes any responsibility for incidental or consequential damage of any nature.


For information on a warranty claim, please visit our Warranty Support section or call 888 412.3726.

Warranty Support

Description Model Shop Drawing CAD Revit/BIM Data Sheet 3-Part Specs LEED Installation Warranty
Aluminum, 30" x 54" BA3054 PDF DWG LINK PDF WORD PDF PDF PDF
Aluminum, 36" x 30" BA3630 PDF DWG LINK PDF WORD PDF PDF PDF
Aluminum, 36" x 36" BA3636 PDF DWG LINK PDF WORD PDF PDF PDF
Aluminum, 48" x 48" BA4848 PDF DWG LINK PDF WORD PDF PDF PDF
Aluminum, 30" x 72" BA3072 PDF DWG LINK PDF WORD PDF PDF PDF
Aluminum, 30" x 96" BA3096 PDF DWG LINK PDF WORD PDF PDF PDF
Aluminum, 36" x 96" BA3696 PDF DWG LINK PDF WORD PDF PDF PDF
Steel, 30" x 54" BG3054 PDF DWG LINK PDF WORD PDF PDF PDF
Steel, 36" x 30" BG3630 PDF DWG LINK PDF WORD PDF PDF PDF
Steel, 36" x 36" BG3636 PDF DWG LINK PDF WORD PDF PDF PDF
Steel, 48" x 48" BG4848 PDF DWG LINK PDF WORD PDF PDF PDF
Steel, 30" x 72" BG3072 PDF DWG LINK PDF WORD PDF PDF PDF
Steel, 30" x 96" BG3096 PDF DWG LINK PDF WORD PDF PDF PDF
Steel, 36" x 96" BG3696 PDF DWG LINK PDF WORD PDF PDF PDF

PDF Product Change Notice - 02/04/2022
